Brushless DC Motor/UAV Motor 4110

4110

Supports 4-6S lithium battery, peak current 35A, thrust range 1800-3000g, speed up to 9000rpm. Rotational motion, used for civil drones, aviation models, wind blade loads. Applications: 1. Civilian aerial photography drones, multi-axis rotary wing aircraft models. 2. Hair dryers for garden tools. 3. Storage environment: ambient temperature (-15°C~70°C), humidity (10%~90%).

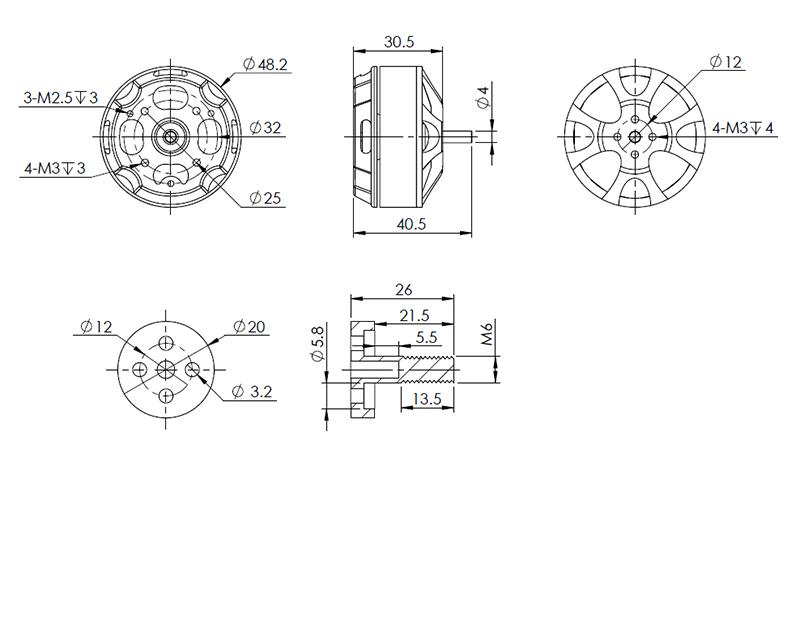

Performance parameters Motor model Unit WFDBL4110 (KV400) WFDBL4110 (KV580) No-load current A 0.5 0.8 Maximum current A 28 34 Maximum power W 621 503 Operating voltage (Lipo) S 6S 4S Maximum efficiency ％ ＞85 ＞85 Recommended ESC 30A 35A Motor resistance Ω 0.1006 0.0559 Propeller configuration 〞 1238/1440/1447/1555 1238/1447 Thrust g 2000-3000 1800-2500 Motor weight g 165 165 Motor size mm φ48*30.5 φ48*30.5
