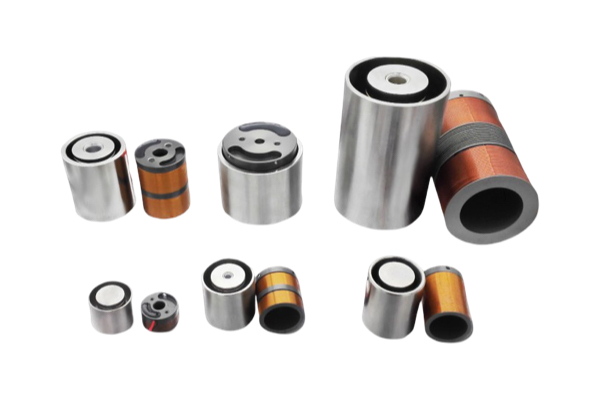

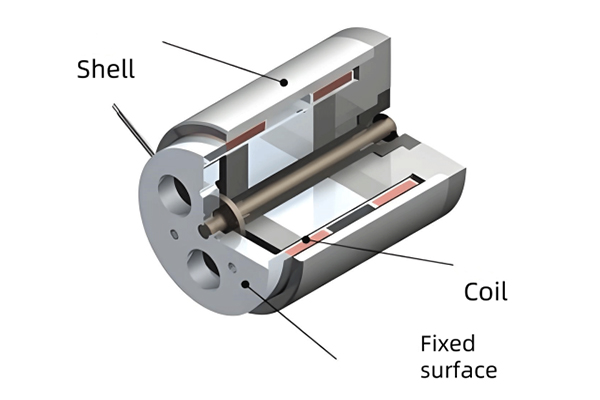

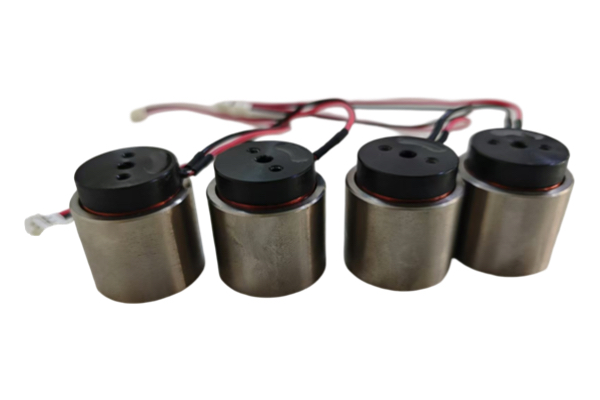

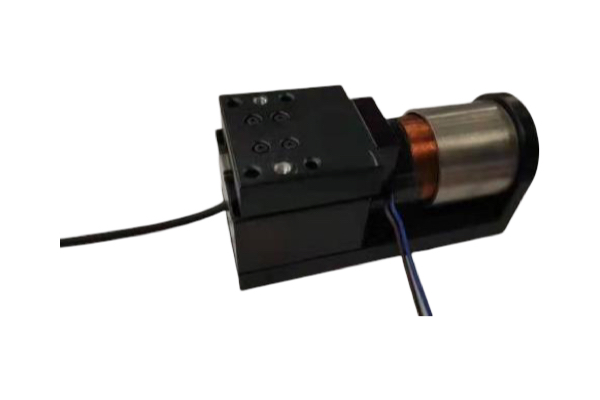

Cylindrical Voice Coil Motor/Linear Motor/Linear Motor

30-15

The maximum terminal voltage supports 48Vdc, continuous current 0.56A, peak current 1.9A, and continuous thrust 4N. Linear motion, used for micron or nanometer level point-to-point positioning, used in the industrial control industry, high frequency, high response, and small installation space. Applications: 1. Applicable to point-to-point positioning at the micron or nanometer level. 2. High frequency and high response fields. 3. Installation in small spaces. 4. Storage environment: ambient temperature (-15°C~70°C), humidity (10%~90%).
Performance parameters Motor model Unit WFDVM30-15 Stroke mm 15 Continuous thrust N 4 Peak thrust N 13.8 Motor constant N/√W 1.9 Continuous thermal power W 4.5 Continuous current Arms 0.56 Peak current Arms 1.92 Thrust constant ±10% N/Arms 7.2 Back EMF constant ±10% V/(m/s) 7.2 Resistance @ 25℃ ±10% Ω 11.1 Inductance ±20% mH 2.5 Electrical time constant ms 0.2 Motor weight g 25 Stator weight g 100 Maximum coil temperature (self-cooling) ℃ 120 Maximum terminal voltage Vdc 48

Performance parameters
Motor model	Unit	WFDVM30-15
Stroke	mm	15
Continuous thrust	N	4
Peak thrust	N	13.8
Motor constant	N/√W	1.9
Continuous thermal power	W	4.5
Continuous current	Arms	0.56
Peak current	Arms	1.92
Thrust constant ±10%	N/Arms	7.2
Back EMF constant ±10%	V/(m/s)	7.2
Resistance @ 25℃ ±10%	Ω	11.1
Inductance ±20%	mH	2.5
Electrical time constant	ms	0.2
Motor weight	g	25
Stator weight	g	100
Maximum coil temperature (self-cooling)	℃	120
Maximum terminal voltage	Vdc	48
