Flat Voice Coil Motor/Linear Motor/Linear Motor

Flat Voice Coil Motor/Linear Motor/Linear Motor

20-06

Consult

Features and Technical Indicators
Advantages
After-sales Quality Service

The maximum terminal voltage supports 48Vdc, continuous current 1.2A, peak current 4.1A, and continuous thrust 7.5N. Linear motion, used for micron or nanometer level point-to-point positioning, used in the industrial control industry, high frequency, high response, and small installation space.
Applications:
1. Applicable to point-to-point positioning at the micron or nanometer level.
2. High frequency and high response fields.
3. Installation in small spaces.
4. Storage environment: ambient temperature (-15°C~70°C), humidity (10%~90%).

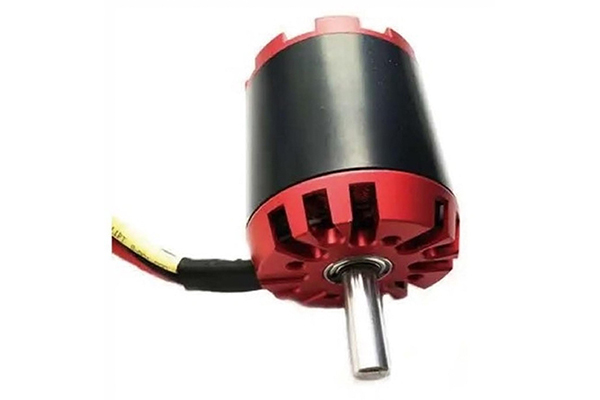

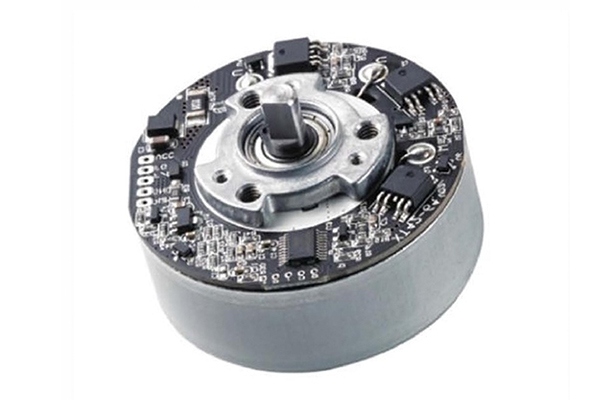

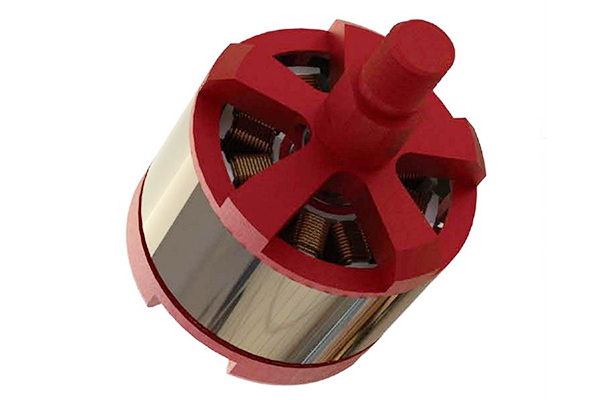

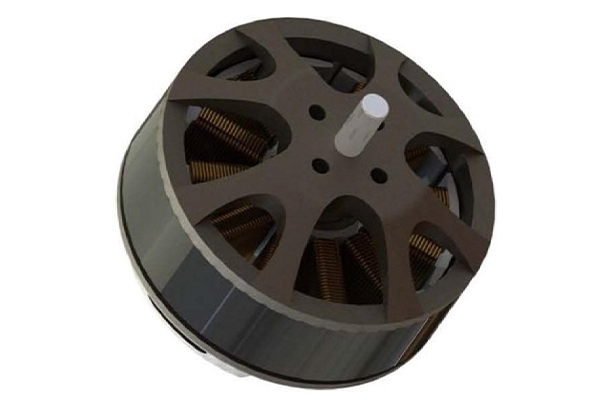

Features:
Low loss, small size, light weight, low heat generation, good speed regulation performance, high efficiency, low noise, high reliability, long life, strong overload capacity, good braking effect, simple structure, easy maintenance.
Applications: Rotary motion, with reducer motion or direct drive, providing high power density and high energy efficiency; used in various mid-to-high-end product fields that require wide speed regulation range, high life, energy saving, low noise, low interference, etc.

Performance parameters
Motor Model
mm
15
Stroke
N
4
Continuous thrust
N
13.8
Peak thrust
N/ √W
1.9
Motor constant
W
4.5
Continuous heat power
Arms
0.56
Continuous current
Arms
1.92
Peak current
N/Arms
7.2
Thrust constant ±10%
V/(m/s)
7.2
Back EMF constant ±10%
Ω
11.1
Resistance@25℃±10%
mH
2.5
Inductance ±20%
ms
0.2
Electrical time constant
g
25
Mover weight
g
100
Stator weight
C
120
Maximum coil temperature (self-cooling)
Vdc
48
Maximum terminal voltage
mm
15
Brand Advantage：

Wanfuda Company has the permanent right to use the "WFD MOTOR" brand, and owns the invention patents and technical services for all motor products.
Market Advantages：

More than 100 high-quality customers around the world. Among them, the Japanese market accounts for more than 20%, and we are the only manufacturer of motors for Toyota car navigation. At present, the domestic market share of DC motors exceeds 60%, and we are the long-term and stable main supplier of motors required by Midea and Gree air conditioners. More importantly, the motors produced by Wanfuda Company for various automation equipment have been sold all over the world. Due to "excellent quality, low price and thoughtful service", we are deeply favored by many foreign automation equipment industry customers.
Production Advantages：

The company currently has a variety of automated production equipment such as high-speed automatic punching machines, precision injection molding machines, high-speed placement machines, fully automatic winding machines, and various precision inspection and testing instruments. There are more than 30 motor assembly production lines of various types, and the annual output of motors reaches more than 8 million units.
Technical Advantages：

With 20 years of professional technology accumulation and hundreds of product technology patents, we optimize the performance of motor products to the extreme and keep up with the application of cutting-edge new materials in the industry. We also have a technical R&D team of more than 46 people, including more than 20 professionals with more than 15 years of experience in motor manufacturing.
Management Advantages:

The company management team of 28 people has more than 20 years of experience in motor production and operation. The main managers in engineering, quality, production, production management, sales and other related departments have more than 10 years of Japanese corporate management experience and many years of German motor technology management experience, forming a quality management team with Japanese and German experts as quality directors.

Motor Model	mm	15
Stroke	N	4
Continuous thrust	N	13.8
Peak thrust	N/ √W	1.9
Motor constant	W	4.5
Continuous heat power	Arms	0.56
Continuous current	Arms	1.92
Peak current	N/Arms	7.2
Thrust constant ±10%	V/(m/s)	7.2
Back EMF constant ±10%	Ω	11.1
Resistance@25℃±10%	mH	2.5
Inductance ±20%	ms	0.2
Electrical time constant	g	25
Mover weight	g	100
Stator weight	C	120
Maximum coil temperature (self-cooling)	Vdc	48
Maximum terminal voltage	mm	15
